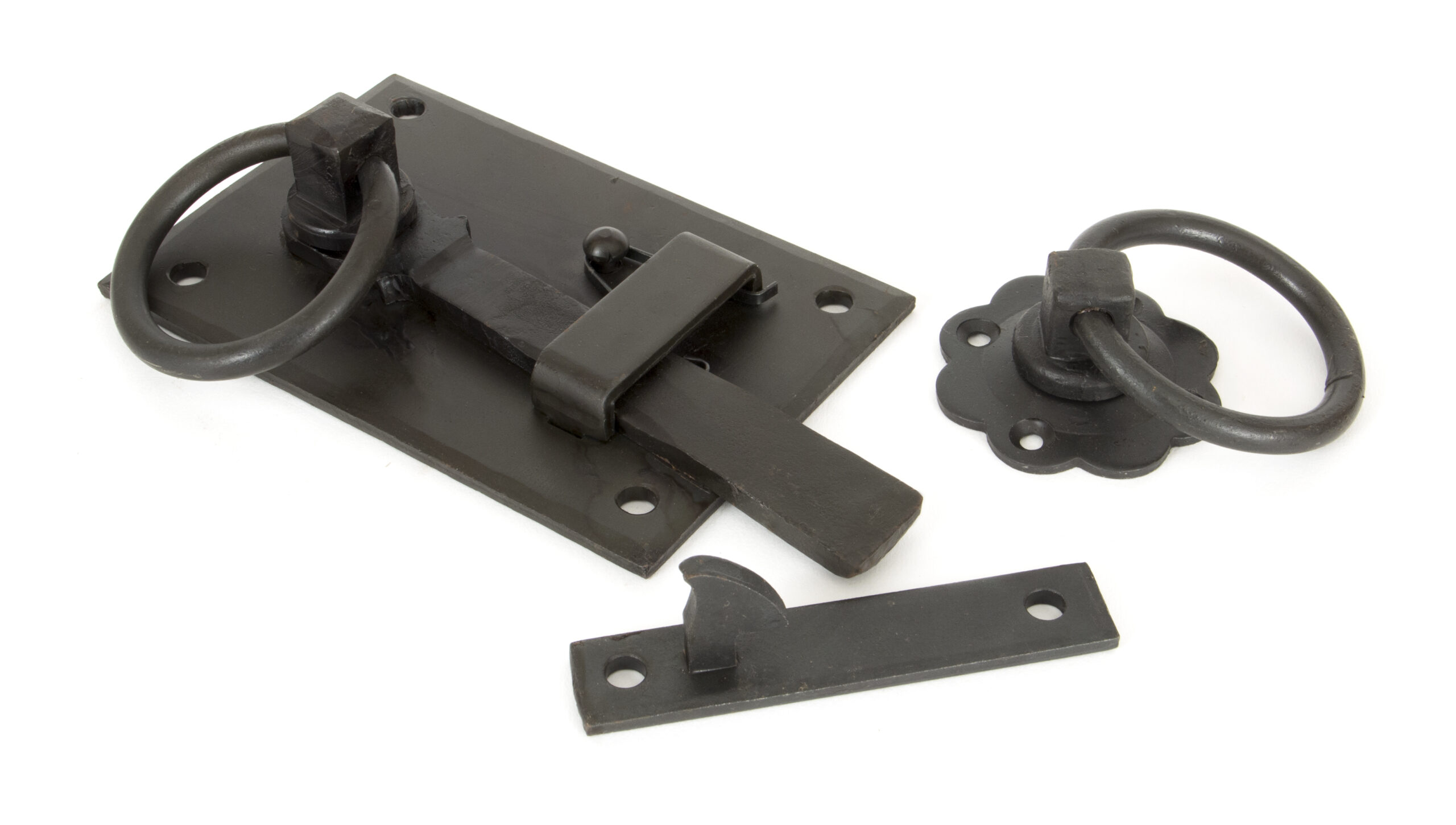

Often selected for internal use as an alternative to a thumblatch, or used externally for entrance and side gates.

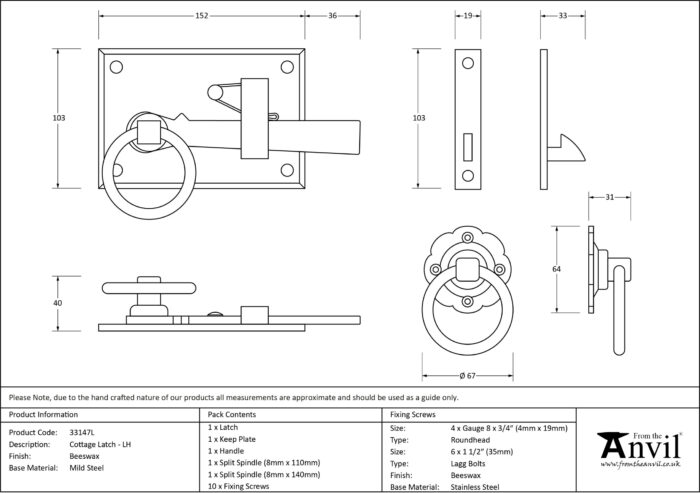

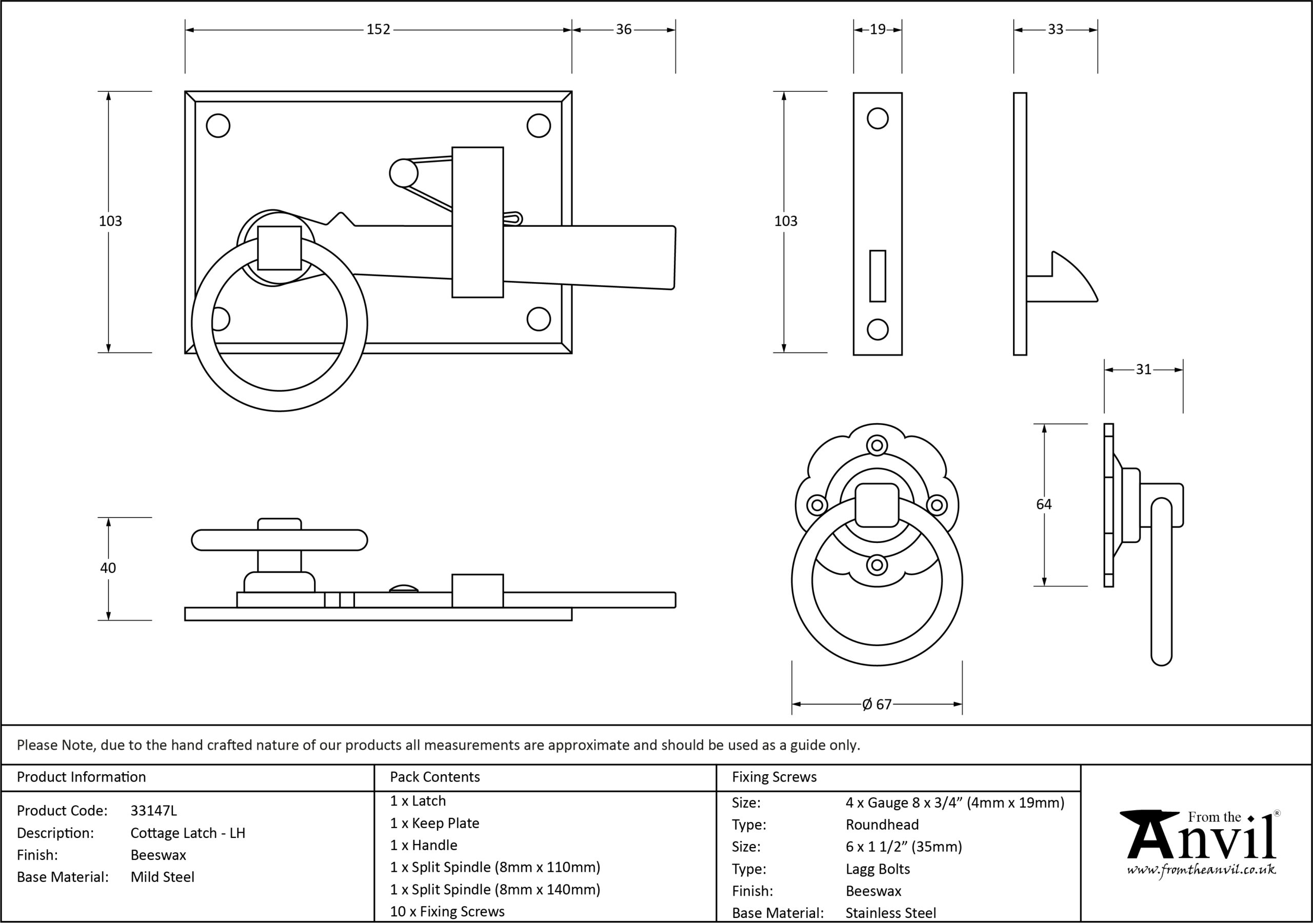

Overall Size: 152mm x 103mm
Handle Size: 69mm
Rosette Size: 67mm
Keep Size: 103mm x 19mm
On inward opening doors/gates hinged on the left, a left hand cottage latch would be required. Maximum door thickness: 70mm. Supplied with matching SS wood screws.
